Basic structure and composition
1. Abrasive layer:
The core abrasive is cubic boron nitride (CBN) (artificially synthesized superhard material, second only to diamond in hardness, but with higher thermal stability).
CBN particles are bonded into a grinding layer by a resin binder (phenolic resin, epoxy resin, etc.), and the particle size range is usually #80~#3000 (rough grinding to mirror finishing).
2. Binder:
The resin provides high elasticity and vibration absorption, reduces impact damage during processing, and is suitable for precision processing.
The curing temperature is low (about 180~200℃), avoiding high temperature thermal damage to CBN (CBN heat resistance can reach more than 1400℃).
3. Matrix:
Commonly used aluminum alloy or composite materials, lightweight design to reduce centrifugal force deformation during high-speed rotation.
Core characteristics
1,High thermal stability: CBN still maintains high hardness at high temperatures, suitable for processing high hardness/heat-resistant alloys (such as high-speed steel, tool steel).
2,Chemical inertness: Almost no chemical reaction with iron-based materials (steel, cast iron), avoiding the "graphitization" wear problem when diamond grinding wheels process iron-based materials.
3,High cutting efficiency: CBN abrasive grains are sharp, wear resistance is better than ordinary corundum grinding wheels, and life is long.
4,Precision surface quality: Combined with the elastic buffer of resin, the surface roughness can reach Ra 0.1μm or less.
5,Low temperature adaptability: Resin binder has limited heat resistance (usually <200℃) and needs to be used with coolant.

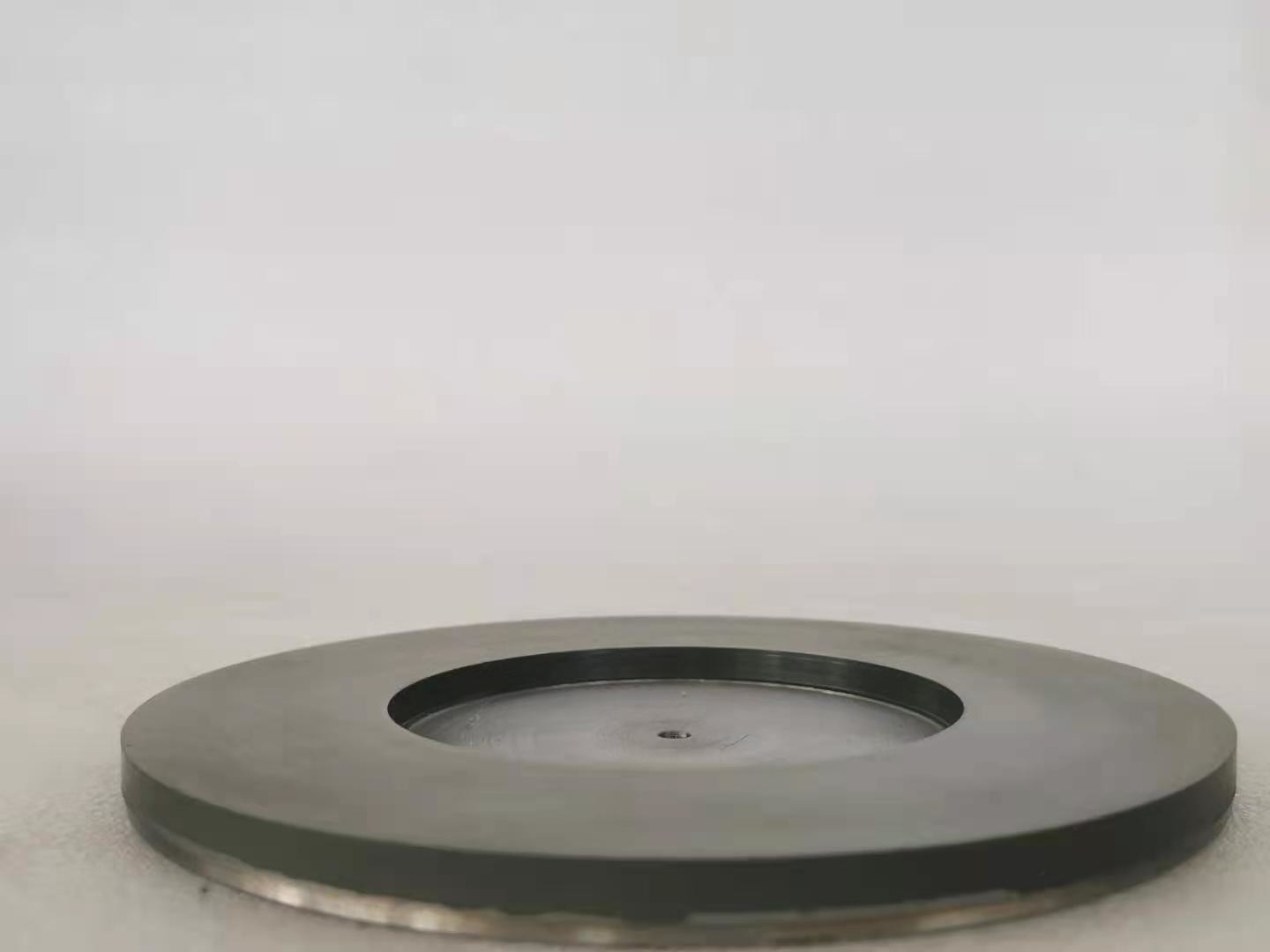

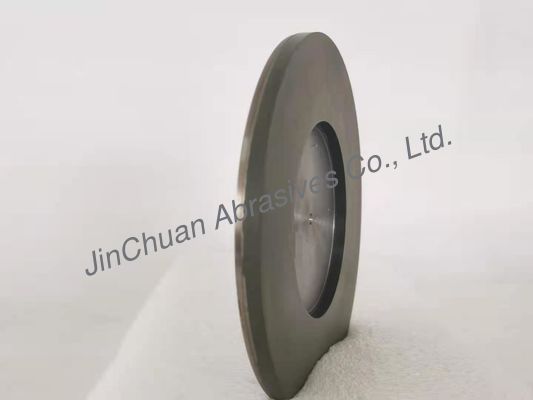

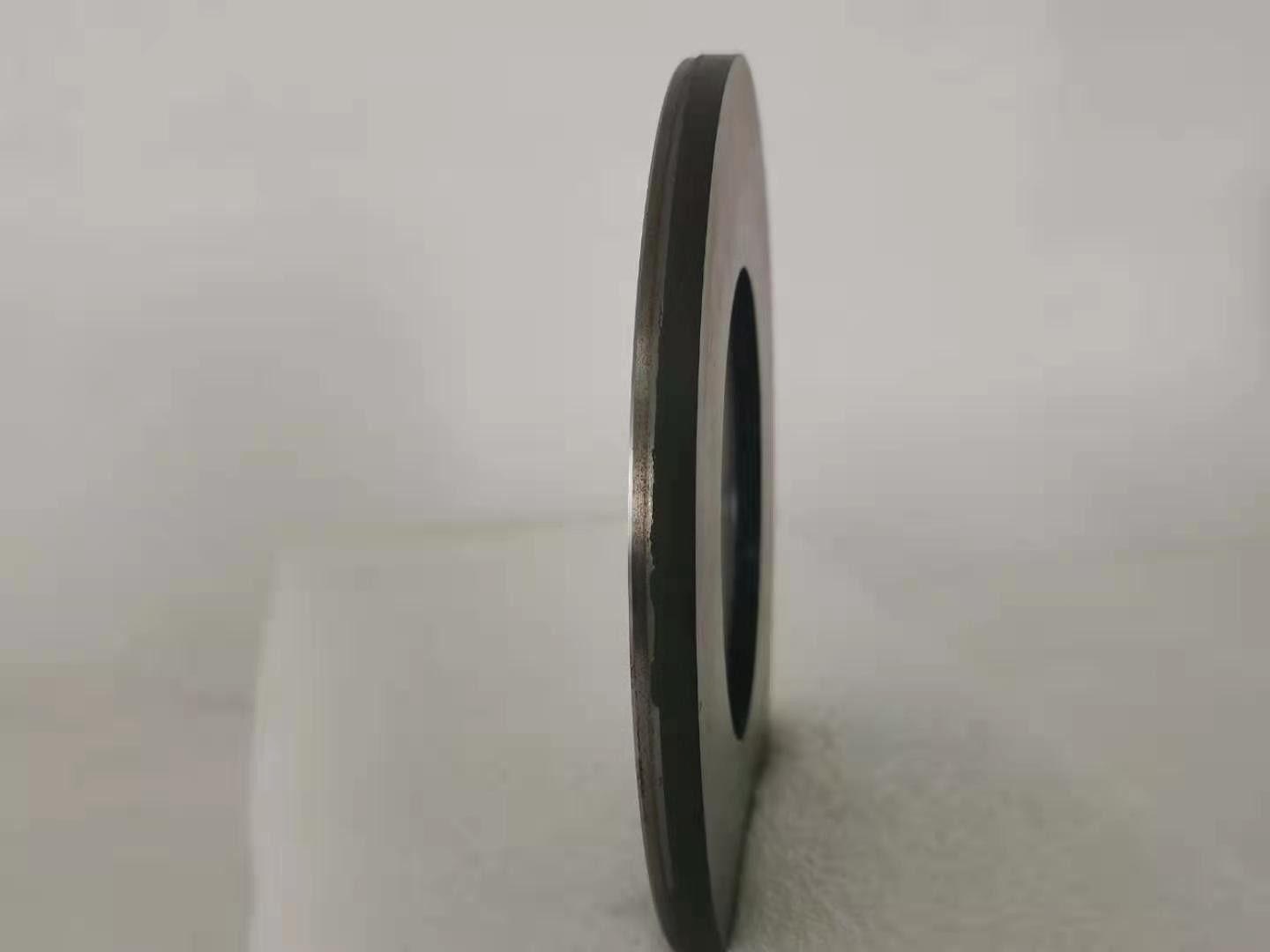

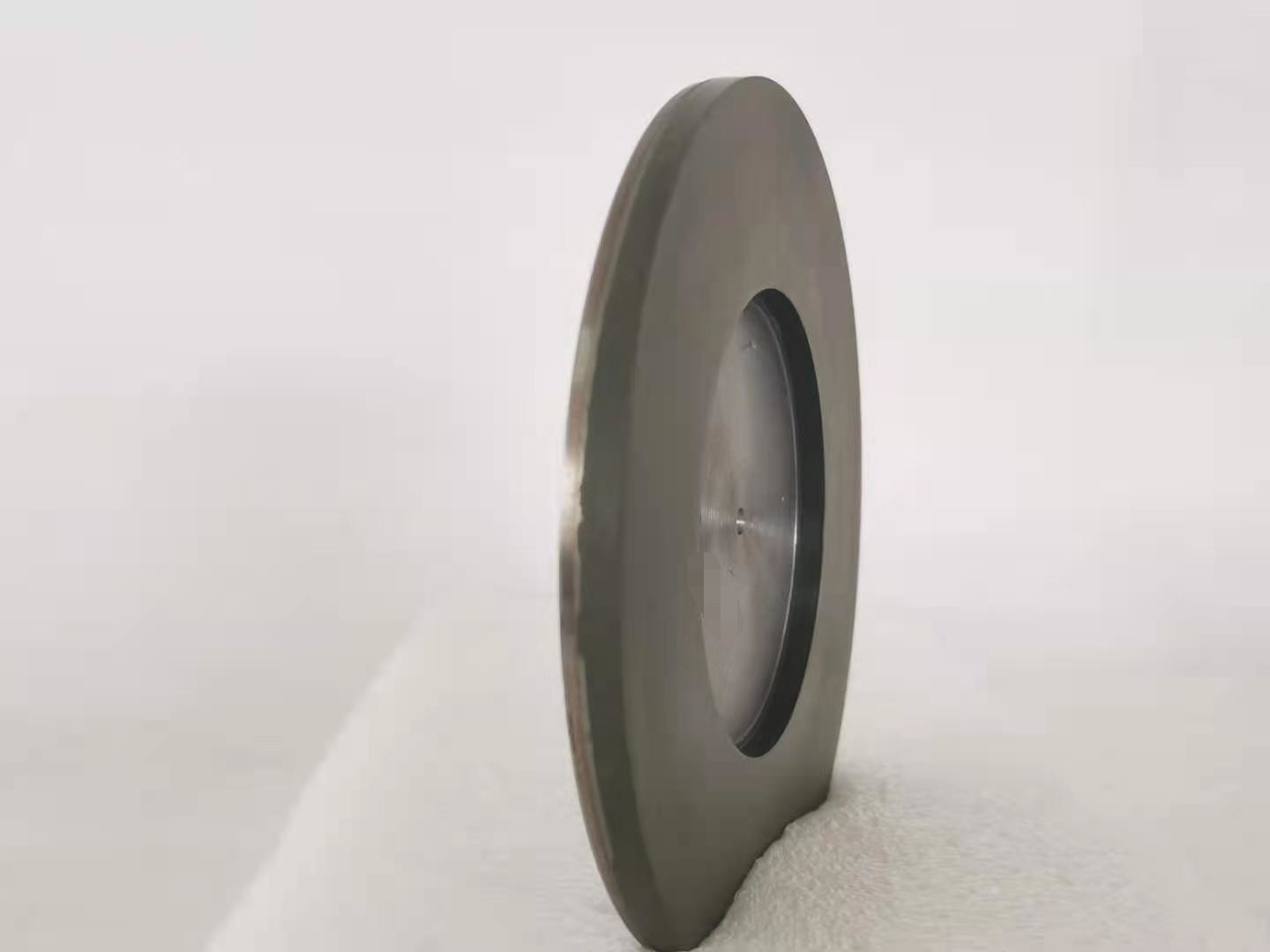

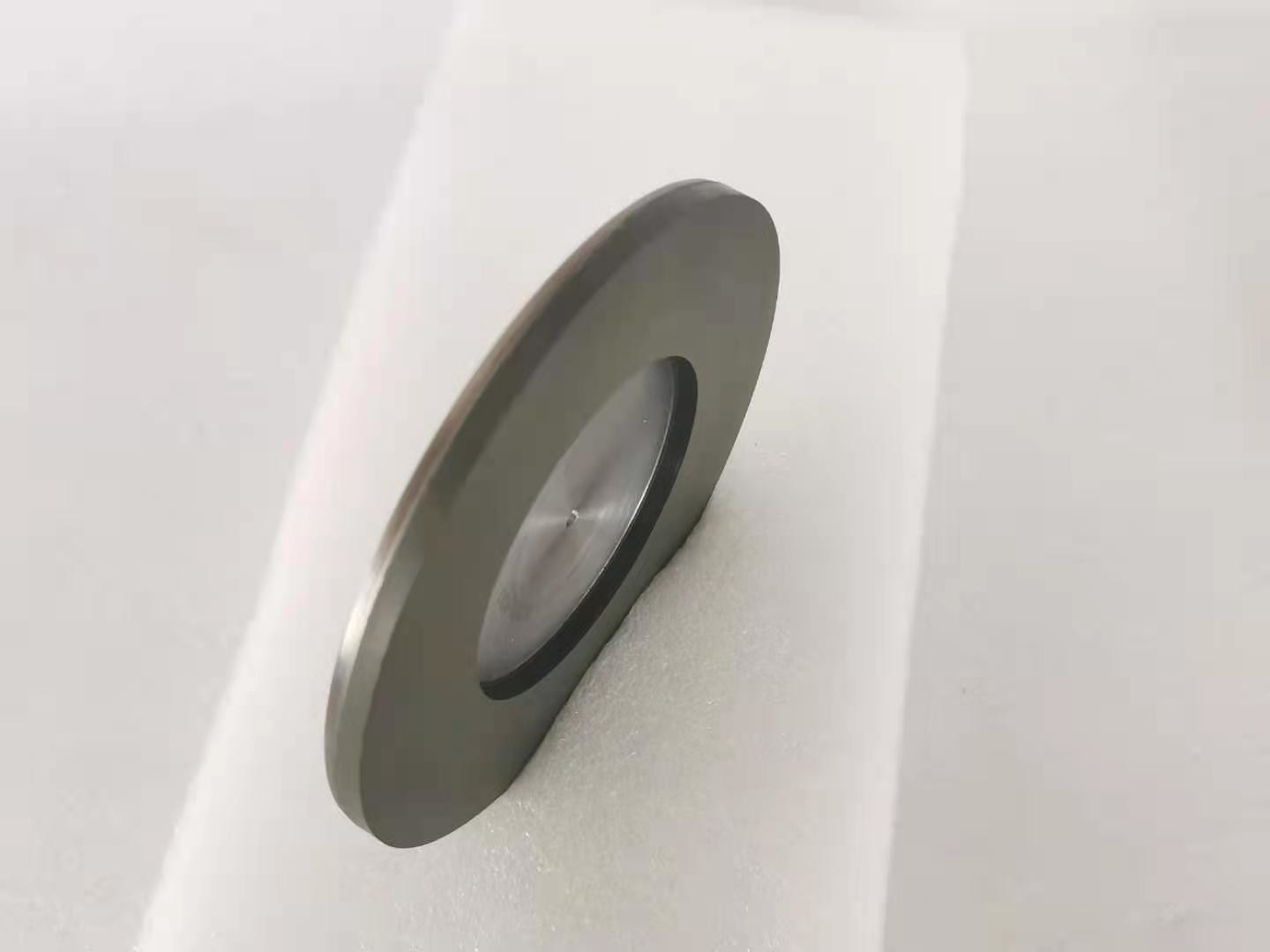

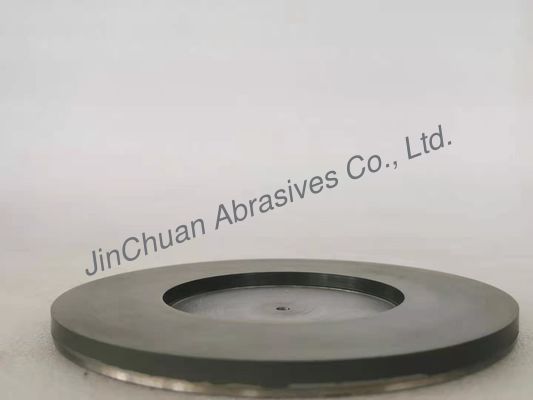

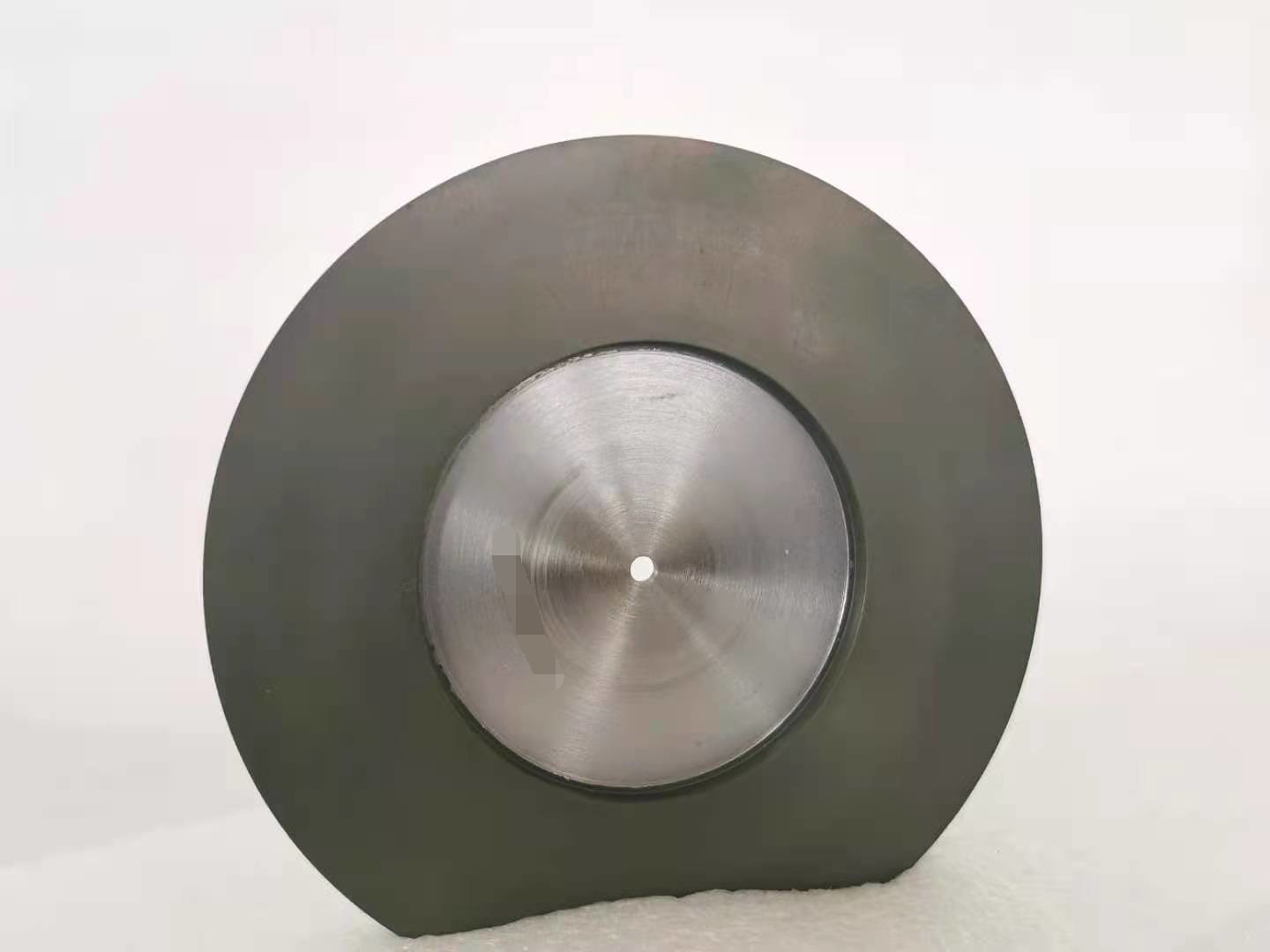

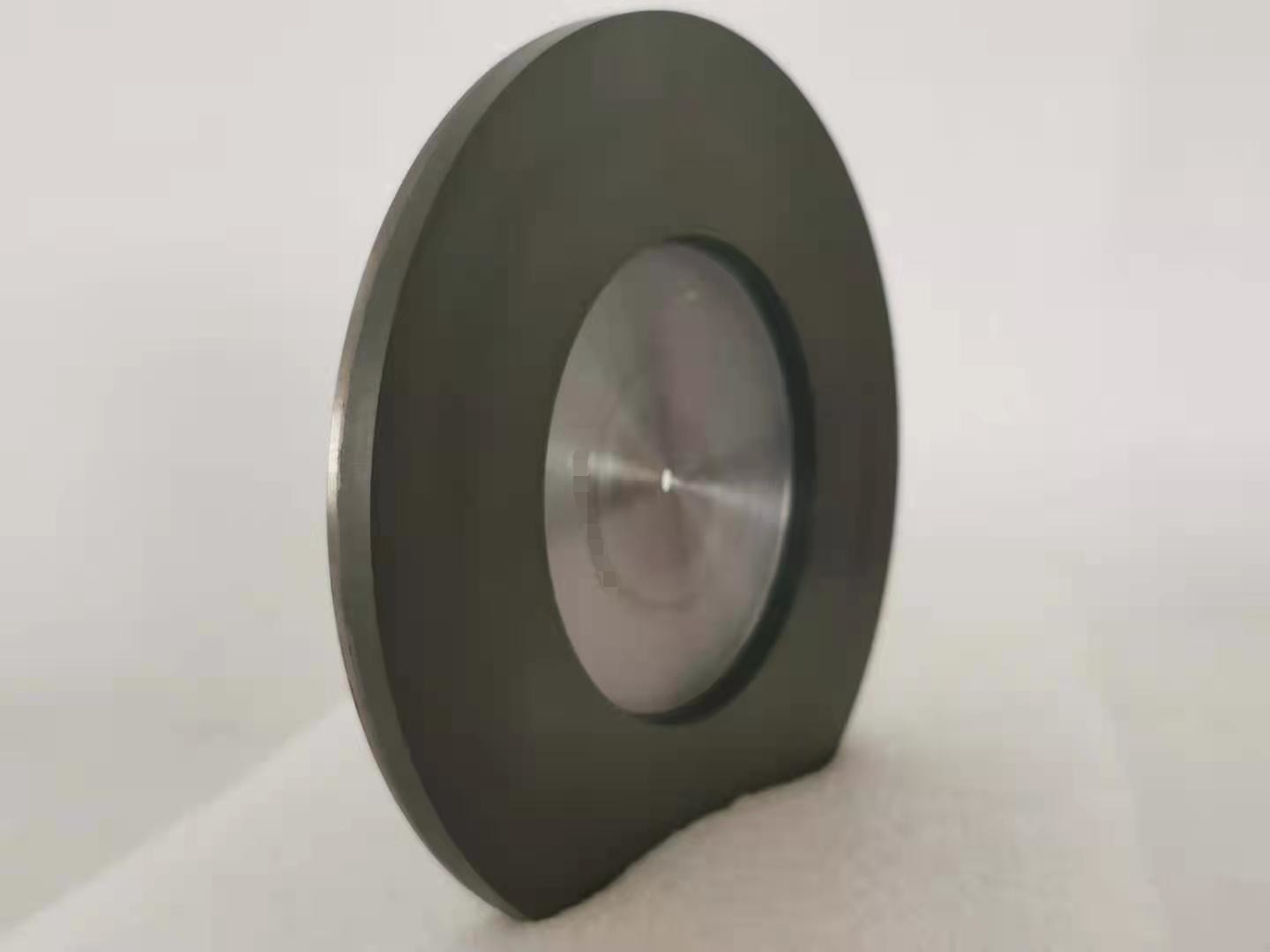

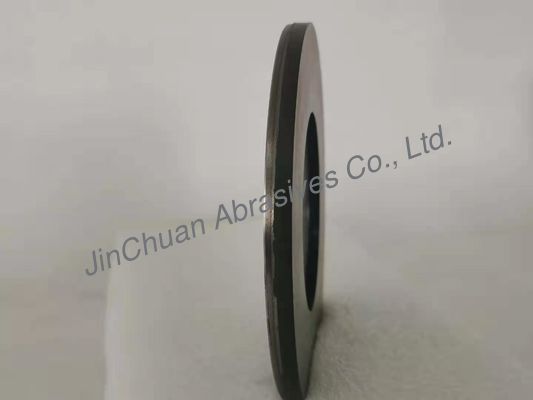

Product specification:
|
Item name |
CBN Grinding Wheel |
| size | 152.4*8*12*35*5 |
| Hardness | Super hard |
|
Material |
steel |
|
Advantage |
Good durability and quality |
| package | Carton foamed |
We have different sizes, which can be customized according to your needs. This grinding wheel is mainly used for repairing and grinding scissors. If you have any other needs, please contact me directly.
Why us?
1,We are factory production, the price is favorable
2,Experienced in making sure that the cutting edge is sharp and the cutting surface is smooth and wear resistant.
3,Using mirror grinding technology, the production of large space design
4,Fast chip removal speed, high cutting efficiency, dynamic balance test
5,We have regular sizes and can also be customized according to the drawings
FAQ:
A: What are your products made of?
B: Our products are made of diamond. We have electroplating and brazing techniques.
A:Are you a trading company or a manufacturing company?
B:We are a factory with more than twenty years of experience.
A: Can I get some samples from you?
B: Yes, we would be happy to provide samples for testing, but the sample fee and freight will be paid by you.We have confidence in our quality, Zhengzhou Jinchuan is the leading brand in the diamond industry.I'm sure you'll be pleased with us.
A: How do you ensure that the quality is up to standard?
B: We have checked the quality of the products three times, one before production, two after production and three before shipment, so don't worry.
A: What if the above specifications do not meet your requirements?
B: We can customize it according to your requirements. Please provide pictures and details for our reference.
A: Do you accept customer brand Oems?
B: Yes, but we need a minimum order quantity.
Looking forward to your inquiry.
Our products are sold all over the world, you can rest assured.
