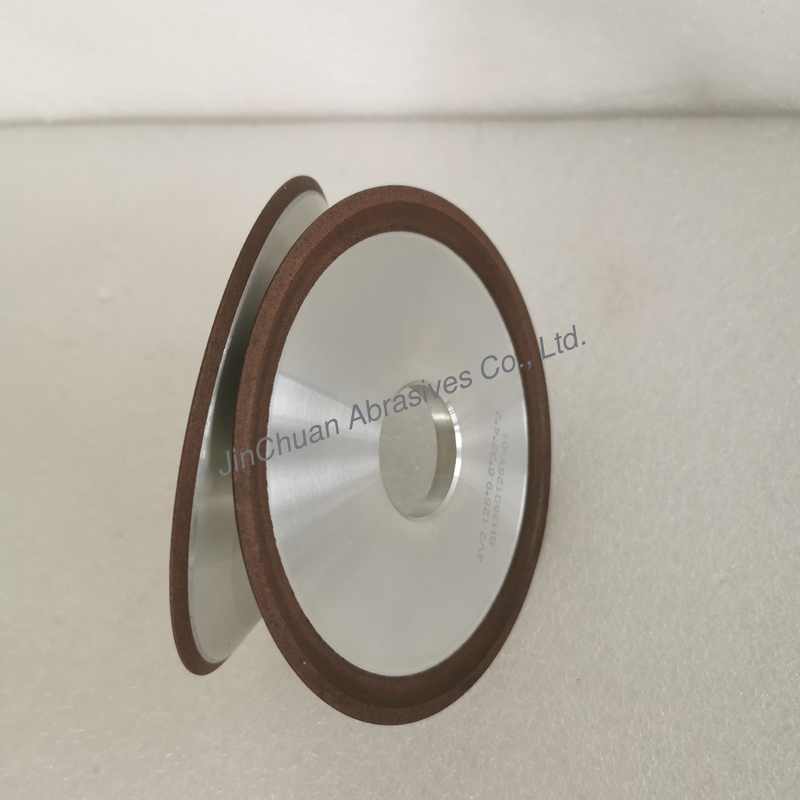

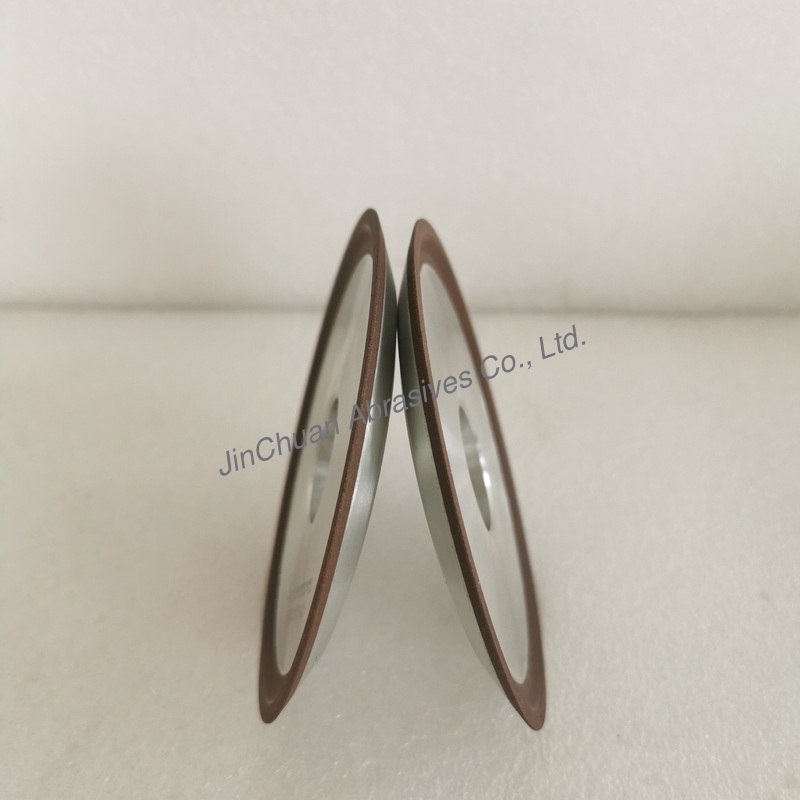

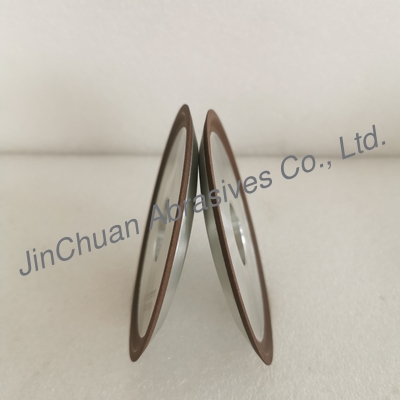

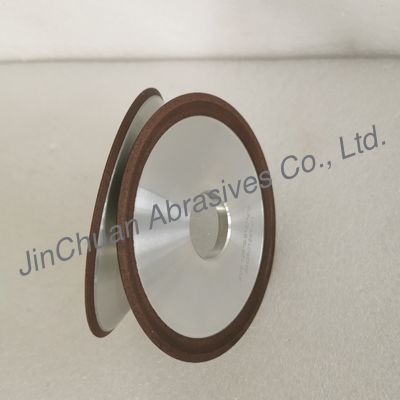

4V2 175mm Resin Bond Diamond Grinding Wheel Product Description
Product Name: Resin Bond Diamond Grinding Wheel
Product Overview:
Resin bond diamond grinding wheels are super-hard abrasive tools made by hot pressing diamond as the abrasive and resin as the binder. They are characterized by high grinding efficiency, high machining accuracy, and long service life. These wheels are widely used for grinding hard and brittle materials such as cemented carbide, ceramics, glass, and semiconductors.Diamond particles provide super strong cutting force, specializing in hard and brittle materials such as ceramics, glass, carbide, stone, etc.The resin bond gives the grinding wheel excellent elasticity and self-sharpening properties, ensuring that it remains sharp and has a high surface finish after long-term operation.
Applications:
Grinding of cemented carbide tools and molds
Precision grinding of ceramic materials
Lapping and polishing of optical glass
Cutting and grinding of semiconductor materials
Specifications:
| Diameter | Thickness: | Inner Hole: | Width of abrasive: | Depth of abrasive: | Grit: | Concentration: |
| 125mm | 9.6mm |
32mm |
4mm | 2mm | D76 | C125 |
| 160mm | ||||||
| 175mm | 12mm | 50.8mm |
Of course, if you need other sizes, we can also customize them for you.
Why choose us?
ISO 9001 certification, quality assurance;
Support customized services, flexible adaptation of specifications, particle size, and hardness;
Professional technical team provides selection and after-sales support.
Our products are sold all over the world, you can rest assured.
