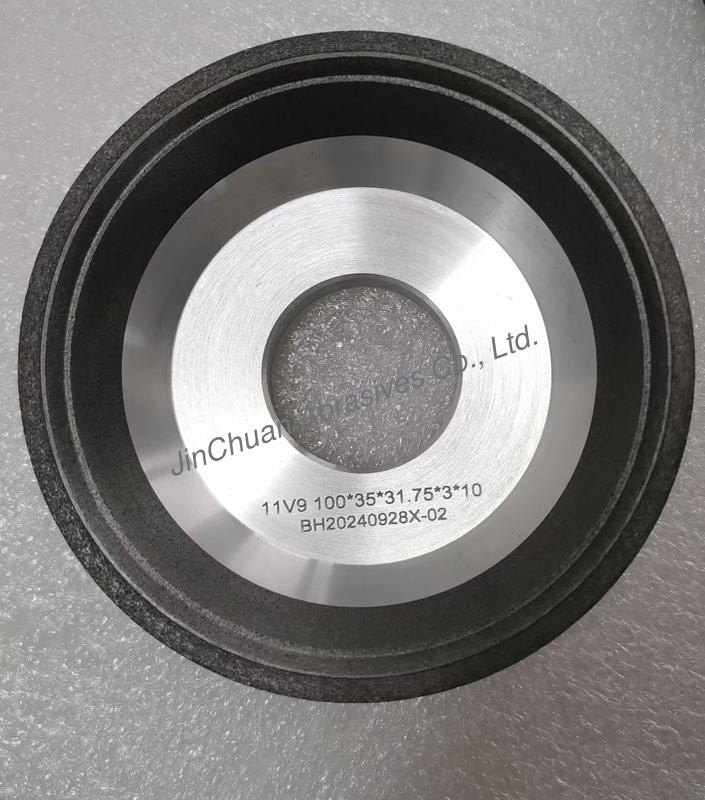

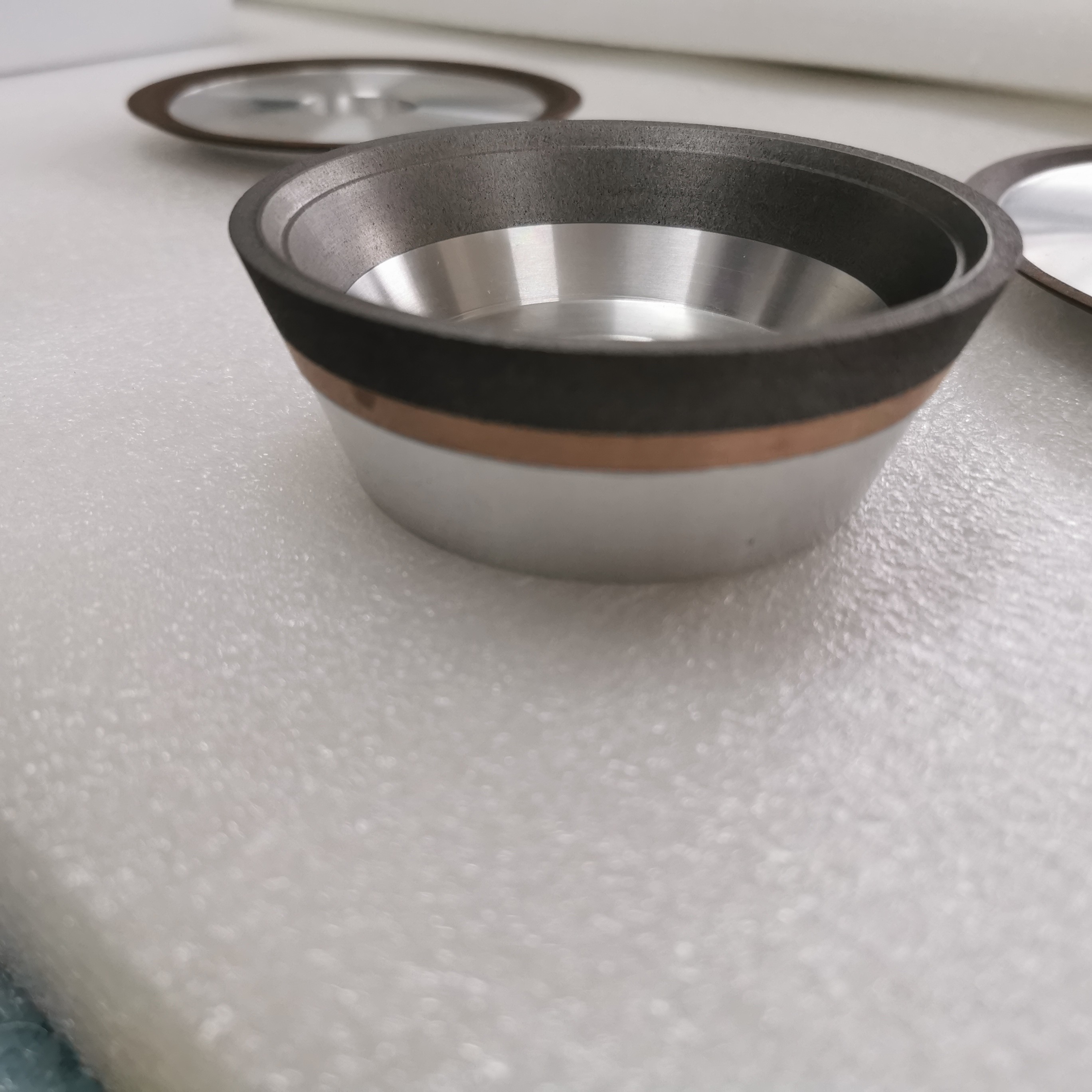

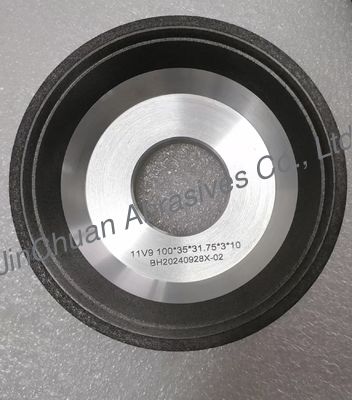

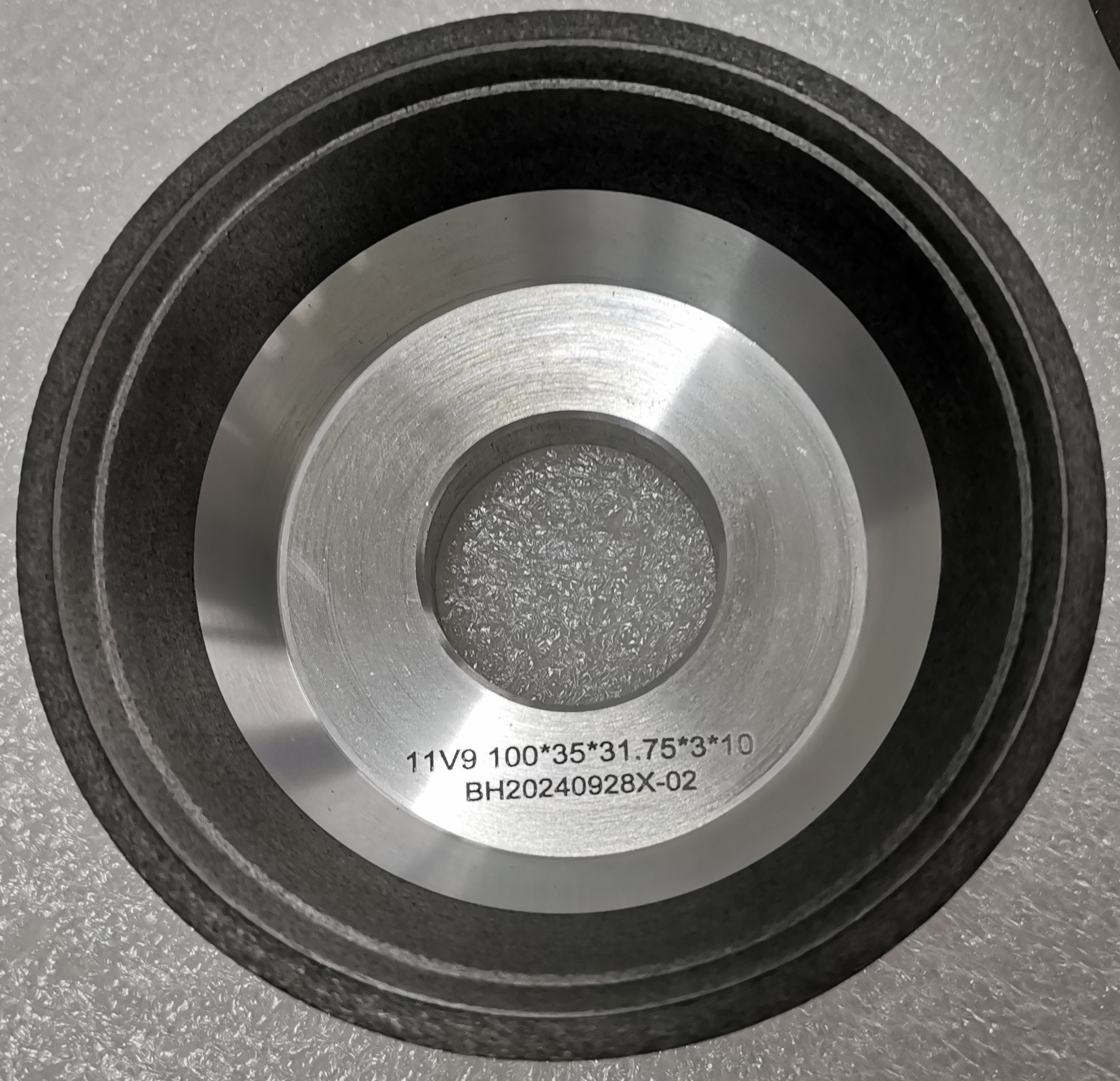

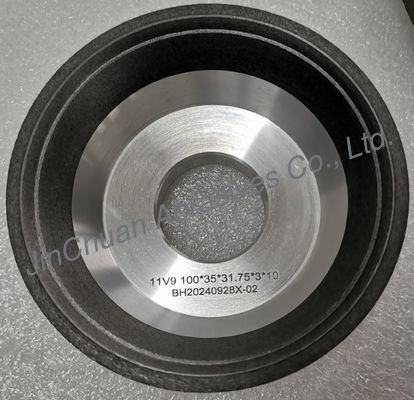

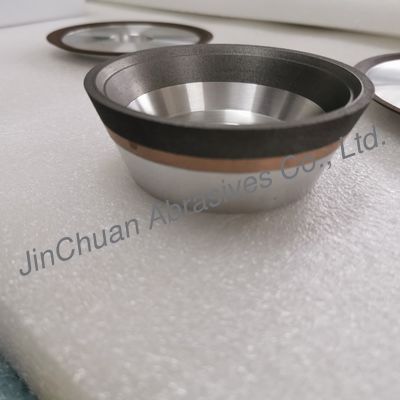

Product Description
Resin bond CBN grinding wheel is a super-hard abrasive tool made of CBN as abrasive and resin as a binder through hot pressing process. It has the characteristics of high grinding efficiency, high processing precision and long service life, and is widely used in the grinding of hard and brittle materials such as cemented carbide, ceramics, glass and semiconductors.
The drawing of Diameter 100mm 11V9 Resin Bond CBN Grinding Wheel
Product specifications
Grit size: Different grit sizes can be selected according to processing requirements, such as #80, #120, #180, #240, #320, etc.
Binder: Commonly used resin binders include phenolic resin, polyimide resin, etc.
Shape: Provides a variety of shapes such as flat grinding wheels, bowl-shaped grinding wheels, and disc-shaped grinding wheels.
Size: Grinding wheels of different sizes can be customized according to customer needs.
The Standard size of 11V9 Resin Bond CBN Grinding Wheels(mm)
| D | T | H | S | X | U |
| 30 | 15 | 8,10 | 60° 70° |
1.5,2,3,4,5,10 |
5,6,7,8,10 |
| 50 | 25 | 10,19.05,20 | |||
| 75 | 25,30,32 | 19.05,20 | |||
| 90 | 35,40 | 19.05,20 | |||
| 100 | 35,40 | 19.05,20,31.75,32 | |||
| 125 | 35,40,45,50 | 19.05,20,31.75,32 | |||
| 150 | 35,40,45,50 | 31.75,32 |
If you need to customize, please provide the following information
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Wheel application;
4. Pictures and drawings of wheels;
We can then design and quote for you
